Seat subframe cover removal (Aprilia RS125/3)

0

Torque wrench settings:

• Front screws (1): 3 Nm (0.3 Kgm).
• Rear screws (2): 2 Nm (0.2 Kgm).
• Inner screw (3): 3 Nm (0.3 Kgm).
• Nut (4): 5 Nm (0.5 Kgm).

Remove the seat; see 7.1.1.

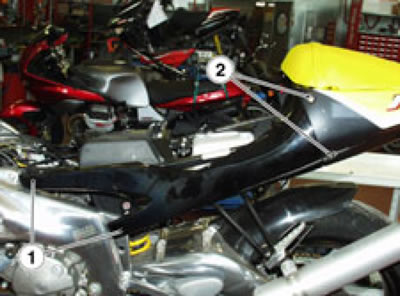

Release and remove the two front screws (1).

Release and remove the two rear screws (2).

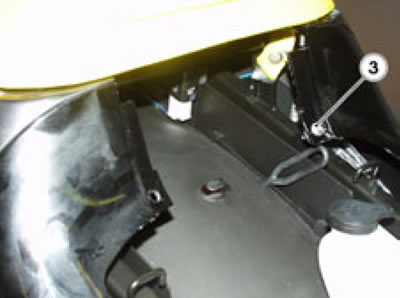

Release and remove the inner screw (3) and collect the nut.

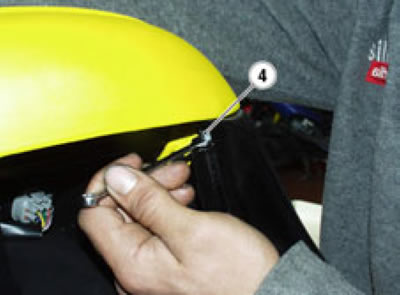

Undo and remove the nut (4).

Remove the seat subframe cover.

Note. If needed, repeat the process for the other seat subframe cover.
