Tail section removal (Aprilia RS125/3)

0

Torque wrench settings:

• Inner nuts (1): 5 Nm (0.5 Kgm).
• Screws (2): 2 Nm (0.2 Kgm).
• Screws (3): 2 Nm (0.2 Kgm).

Remove both seat subframe covers; see 7.1.8.

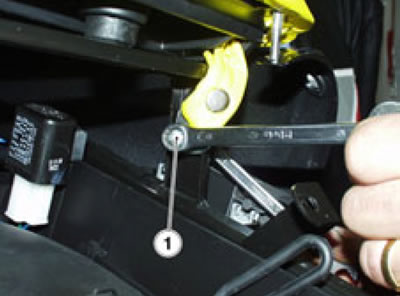

Undo and remove the two inner nuts (1) and collect the screws.

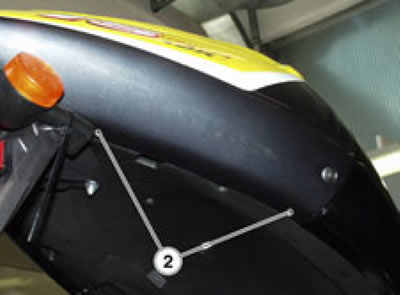

Release and remove the two screws (2) on both sides.



Remove the tail section complete with passenger seat. To remove the passenger seat and the strap:

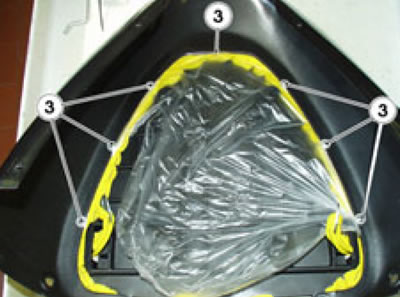

Release and remove the seven screws (3).
