Removing the right-hand rider footpeg bracket (Aprilia RS125/3)

0

Torque wrench settings:

• Screw (1): 3 Nm (0.3 Kgm)
• Screws (2): 10 Nm (1.0 Kgm)
• Screws (3): 22 Nm (2.2 Kgm)
• Screw (5): 2 Nm (0.2 Kgm)

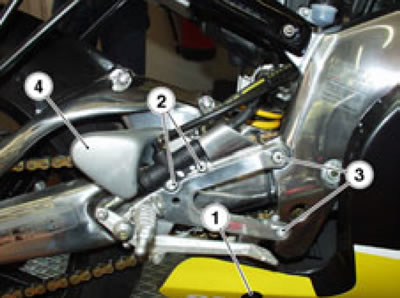

Release and remove the screw (1).

Release and remove the two screws (2) and collect nuts, bushes, washers and guard (4).

Release and remove the two screws (3).



Remove the rider footpeg bracket together with brake master cylinder actuating rod, brake lever and rider footpeg.

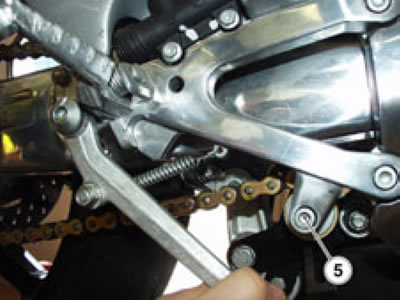

If needed, unscrew the screw (5) and remove the chain tensioner.
