Seat subframe removal (Aprilia RS125/3)

0

Torque wrench settings:

• Screw (1): 7 Nm (0.7 Kgm)
• Screws (2): 22 Nm (2.2 Kgm)

Remove the voltage regulator; see 7.2.3.

Remove the seat subframe lower moulded cover; see 7.1.12.

Remove the airbox; see 4.2.2.

Remove the oil tank; see 3.1.1.

Remove both passenger footpeg brackets; see 7.4.7.

Remove the seat latch; see 7.4.7.

Release and remove the screw (1) and collect the nut.

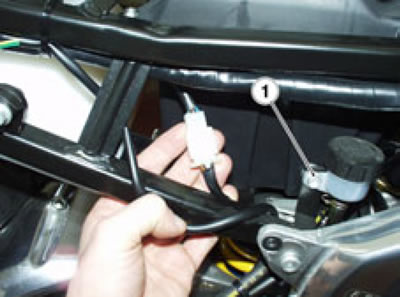

Move aside the rear brake fluid reservoir.



(The original is available on the website: Motoinst.ru)

Warning! Keep the rear brake fluid reservoir in a vertical position to avoid spilling brake fluid. Any brake fluid spills could lead to a dangerous condition.

Release the seat subframe from all wiring ties.

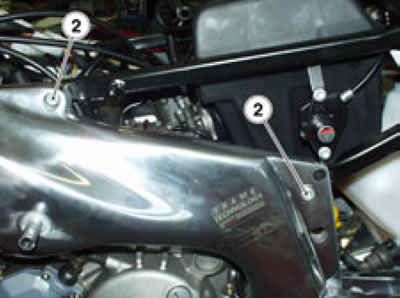

Release and remove the two screws (2) working on both sides of the motorcycle.

Remove the seat subframe.
