Read 1.2.1 carefully.
Remove the number plate bracket but leave it attached to the wiring; see 7.1.13.
Disconnect the pair of connectors (1) of the direction indicator you wish to remove. Look at the colour to identify the connectors:
Release and remove the screw (2).
Remove the direction indicator.
The original article is posted on the website motoinst.ru
Remove the number plate bracket but leave it attached to the wiring; see 7.1.13.

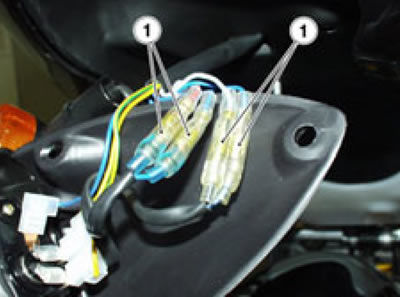

Disconnect the pair of connectors (1) of the direction indicator you wish to remove. Look at the colour to identify the connectors:
- Right indicator: red-blue
- Left indicator: light blue-blue

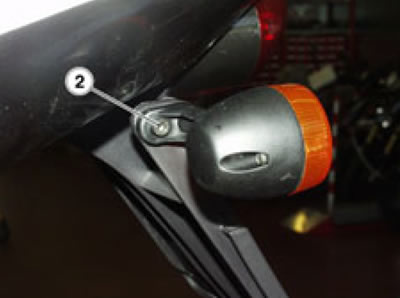

Release and remove the screw (2).
Remove the direction indicator.
The original article is posted on the website motoinst.ru
See this article in russian language
This article has been reviewed: Artemy Kuzmin
