Rear brake pads removal (Aprilia Shiver 750)
- Main
- Aprilia
- Shiver
- SL 750
- Running gear and frame
- Brake system
- Rear brake pads removal

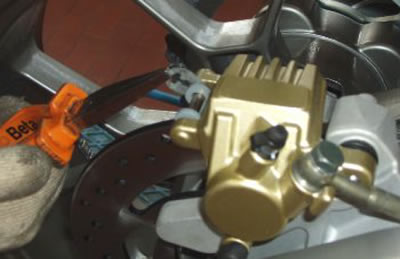

Remove the safety circlip.

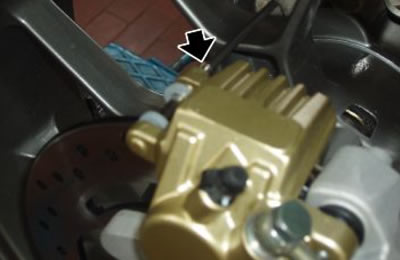

Unscrew and remove the pin.

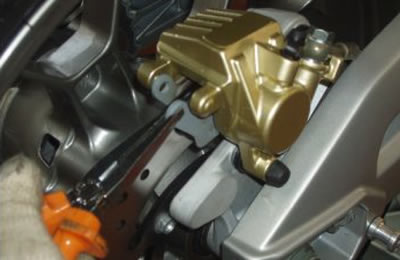

Extract one pad at a time.
See also specifications for this operation.
The original material is located on an online resource MotoInst.ru
Unscrew and remove the pin.
Extract one pad at a time.
Caution! After removing the pads, do not operate the brake control lever or the calliper plungers could go out of their seats resulting in brake fluid leaks.
See also specifications for this operation.
The original material is located on an online resource MotoInst.ru
