Fuses designation (Aprilia Shiver 750)
- Main
- Aprilia
- Shiver
- SL 750
- Electric equipment
- Equipment and devices
- Fuses designation
Contents: Auxiliary fuses ↓ Main fuses ↓

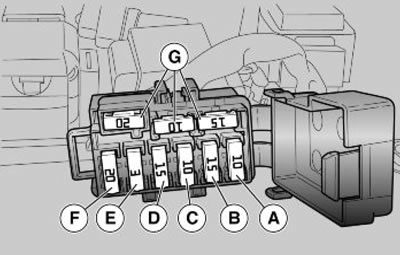

Auxiliary fuses
- A - Coil, Light logic relay, Recovery logic relay, Stop, Horn, Tail lights, License plate light (10A).
- B - Low-beam / high-beam lights (15A).
- C - Live positive lead to EFG-1x control unit and to instrument panel, Instrument panel diagnosis (10 A).
- D - Instrument panel, Ride by wire (15 A).
- E - Permanent positive, ECU power supply (3A).
- F - Lambda probe heater, Coils, Start-up logic, Fan and injection relay, Fuel pump, Purge valve, Injectors, ECU, Start-up logic (20A).
- G - Spare fuses (10 - 15 - 20 A)

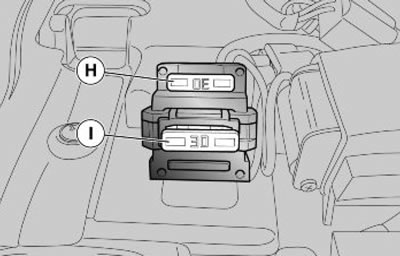

Main fuses
- H - Spare fuses (30 A).
- I - Battery recharge, vehicle loads and injection loads (30 A).
