- Fuel pump characteristics

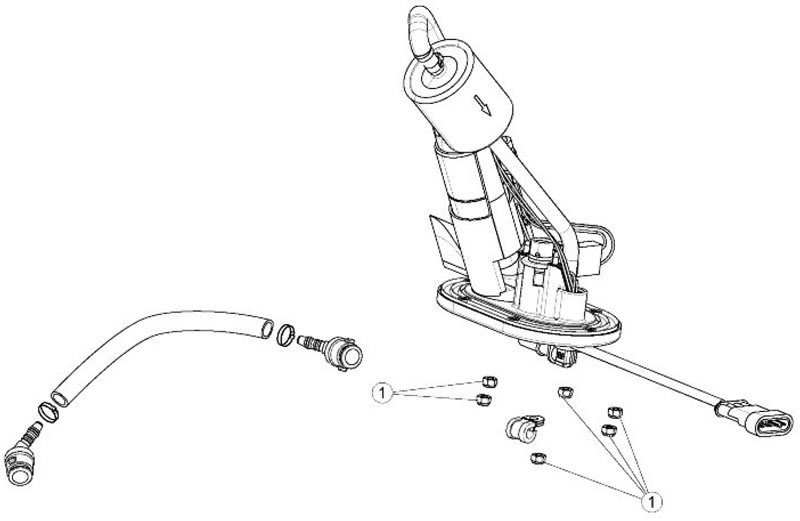

| pos. | Description | Type | Quantity | Torque | Notes |
| 1 | Self-locking nut fastening fuel pump | M5 | 6 | 6 Nm (4.42 lbf·ft) 1 | - |
Electrical characteristics: Resistance: 0.7 +/- 0.2 Ohm
Axone: electrical errors
Fuel pump relay control p0230
Example value: shorted to positive / open circuit, shorted to negative.
Error cause
If shorted to positive: excessive voltage has been detected at PIN 62 of the VEHICLE connector.
If the circuit is open, shorted to negative: voltage equal to zero has been detected at PIN 62 of the VEHICLE connector
