Note. The operations described below refer to removing only one head but apply to both heads.
Remove the head cylinder unit.

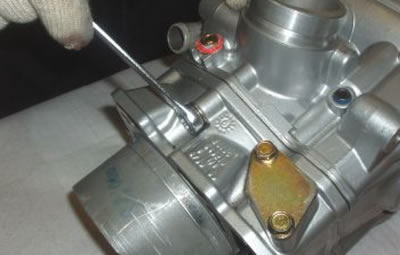

Undo and remove the screw on the inlet side.

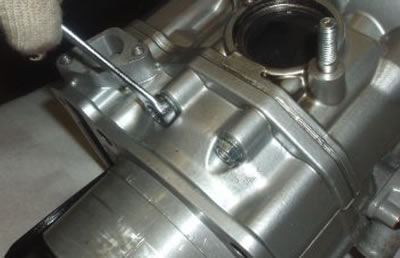

Undo and remove the screws on the outlet side.
Separate the cylinder from the head.

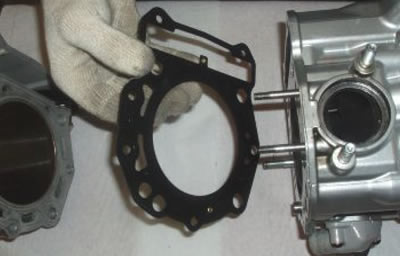

Collect the washer.
