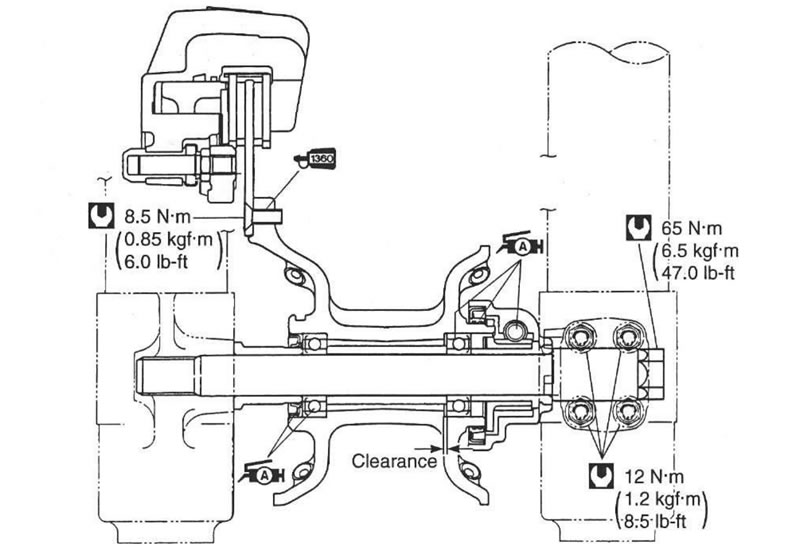

Front wheel — design description (Suzuki DR-Z 250)
- Main
- Suzuki
- DR-Z
- DRZ-250
- Running gear and frame
- Wheels and tires
- Front wheel — design descripti…

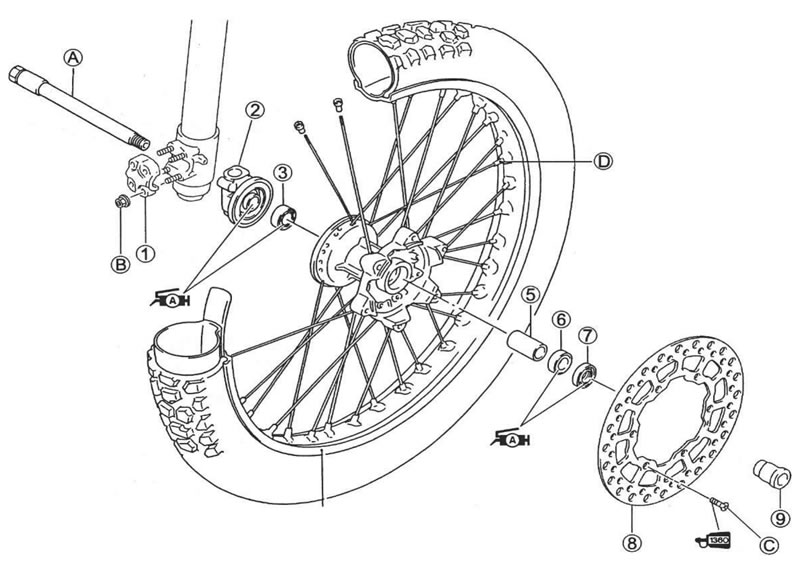

1. Axle cover; 2. Odometer reducer; 3. Right bearing; 4. Front wheel; 5. Bushing; 6. Left bearing; 7. Seal; 8. Brake disc; 9. Bushing; A. Front axle; B. Cover nut; C. Bolt; D. Spoke nut
| Position | Nm | kgm | lb-ft |
| (A) | 65 | 6.5 | 47.0 |
| (B) | 12 | 1.2 | 8.5 |
| (C) | 10 | 1.0 | 7.0 |
| (D) | 4 | 0.4 | 3.0 |
